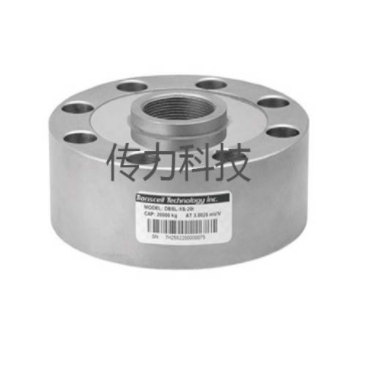

DBSL-XS 輪輻式傳感器
技(jì )術簡介：
輪輻式傳感器；優質合金鋼材質；高精度；高穩定性；低外形；安裝簡便、快速；表層鍍鎳防腐處理；适用于試驗機、汽車衡和大型料鬥秤等；産品特點和優勢
Features 主要特點
● 輪輻式傳感器
● 優質合金鋼材質
● 高精度
● 高穩定性
● 低外形
● 安裝簡便、快速
● 表層鍍鎳防腐處理
● 适用于試驗機、汽車衡和大型料鬥秤等
Capacities 量程
▪ 20t
Specification 技(jì )術參數
|
Rated Output |
額定輸出 |
3.0mV/V ±0.25% |
|
Zero Balance |
零點平衡 |
±1% of rated output |
|
Creep after 30 minutes |
蠕變 |
±0.03% of rated output |
|
Nonlinearity |
非線性 |
±0.03% of rated output |
|
Hysteresis |
滞後 |
±0.03% of rated output |
|
Repeatability |
重複性 |
±0.03% of rated output |
|
Temp. effect on output |
靈敏度溫漂 |
≤0.002% of applied output/ºC |
|
Temp. effect on zero |
零點溫漂 |
≤0.002% of rated output/ºC |
|
Safe Temp. Range |
可用溫度範圍 |
-10ºC to + 70ºC |
|
Temp. Compensated |
溫度補償範圍 |
-10ºC to + 40ºC |
|
Safe Overload |
安全載荷 |
150% |
|
Input Impedance |
輸入阻抗 |
775 ohm ± 20 ohm |
|
Output Impedance |
輸出阻抗 |
700 ohm ± 5 ohm |
|
Insulation Resistance |
絕緣阻抗 |
≥5000 M ohm (50V DC) |
|
Rated Excitation |
推薦激勵電壓 |
10V DC/AC |
|
Maximum Excitation |
最大激勵電壓 |
15V DC/AC |
|
Cable Length |
導線長度 |
600cm/1000cm |
|
Cable Color Code |
導線顔色 |
Red(+E) Black(-E) Green(+S) White(-S) |
