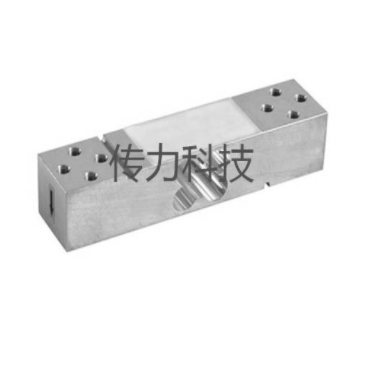

FATS 單點式傳感器

産品介紹

技(jì )術簡介:

單點式;優質鋁合金材質;高精度;高穩定性;安裝簡便、快速;适用于郵資秤、包裝秤、小型料鬥秤、台秤等;

産品特點和優勢

Features 主要特點

●  單點式

●  優質鋁合金材質

●  高精度

●  高穩定性

●  安裝簡便、快速

●  适用于郵資秤、包裝秤、小型料鬥秤、台秤等

Capacities 量程

▪  5kg, 7.5kg, 10kg, 15kg, 20kg, 25kg, 30kg, 45kg, 60kg, 100kg

Specification 技(jì )術參數


Rated Output

額定輸出

2.0mV/V ±10%

Zero Balance

零點平衡

±3% of rated output

Creep after 30 minutes

蠕變

±0.02% of rated output

Nonlinearity

非線性

±0.02% of rated output

Hysteresis

滞後

±0.02% of rated output

Repeatability

重複性

±0.02% of rated output

Temp. effect on output

靈敏度溫漂

≤0.002% of applied output/ºC

Temp. effect on zero

零點溫漂

≤0.002% of rated output/ºC

Safe Temp. Range

可用溫度範圍

-10ºC to + 70ºC

Temp. Compensated

溫度補償範圍

-10ºC to + 40ºC

Safe Overload

安全載荷

150%

Input Impedance

輸入阻抗

410 ohm ± 20 ohm

Output Impedance

輸出阻抗

350 ohm ± 5 ohm

Insulation Resistance

絕緣阻抗

≥5000 M ohm (50V DC)

Rated Excitation

推薦激勵電壓

10V DC/AC

Maximum Excitation

最大激勵電壓

15V DC/AC

Cable Length

導線長度

45m

Cable Color Code

導線顔色

Red(+E) Black(-E) Green(+S) White(-S)
