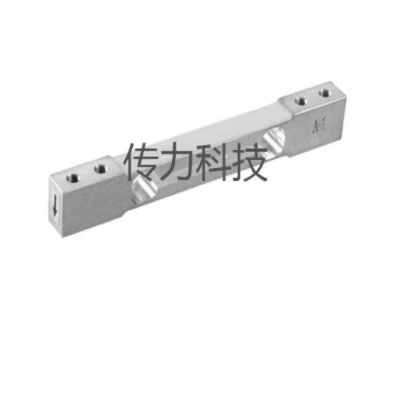

FAW 單點式傳感器
技(jì )術簡介：
單點式；優質鋁合金材質；高精度；高穩定性；安裝簡便、快速;
産品特點和優勢
Features 主要特點
● 單點式
● 優質鋁合金材質
● 高精度
● 高穩定性
● 安裝簡便、快速
Capacities 量程
▪ 500g, 1kg, 1.2kg , 2kg, 2.5kg, 3kg, 5kg
Specification 技(jì )術參數
|
Rated Output |
額定輸出 |
2.0mV/V ±10% |
|
Zero Balance |
零點平衡 |
±3% of rated output |
|
Creep after 30 minutes |
蠕變 |
±0.01% / ±0.02% of rated output |
|
Nonlinearity |
非線性 |
±0.01% / ±0.02% of rated output |
|
Hysteresis |
滞後 |
±0.01% / ±0.02% of rated output |
|
Repeatability |
重複性 |
±0.01% / ±0.02% of rated output |
|
Temp. effect on output |
靈敏度溫漂 |
≤0.002% of applied output/ºC |
|
Temp. effect on zero |
零點溫漂 |
≤0.002% of rated output/ºC |
|
Safe Temp. Range |
可用溫度範圍 |
-10ºC to + 70ºC |
|
Temp. Compensated |
溫度補償範圍 |
-10ºC to + 40ºC |
|
Safe Overload |
安全載荷 |
150% |
|
Input Impedance |
輸入阻抗 |
410 ± 20 ohm |
|
Output Impedance |
輸出阻抗 |
350 ohm ± 5 ohm |
|
Insulation Resistance |
絕緣阻抗 |
≥5000 M ohm (50V DC) |
|
Rated Excitation |
推薦激勵電壓 |
10V DC/AC |
|
Maximum Excitation |
最大激勵電壓 |
15V DC/AC |
|
Cable Length |
導線長度 |
17cm |
|
Cable Color Code |
導線顔色 |
Red(+E) Black(-E) Green(+S) White(-S) |
