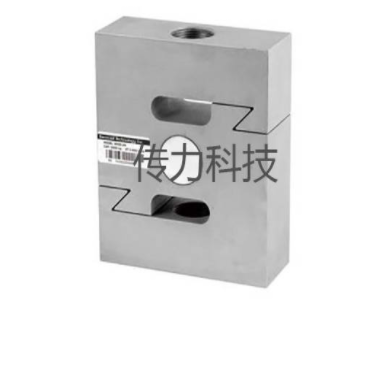

BSSD S型傳感器
技(jì )術簡介：
S型傳感器；優質合金鋼材質；安裝簡便、快速 ,穩定可靠；适用于材料試驗機、配料秤和建築機械等；
産品特點和優勢
Features 主要特點
● S型傳感器
● 優質合金鋼材質
● 安裝簡便、快速 ,穩定可靠
● 适用于材料試驗機、配料秤和建築機械等
Capacities 量程
▪ 5t, 15t, 20t
Specification 技(jì )術參數
|
Rated Output |
額定輸出 |
2.0mV/V ±0.1% |
|
Zero Balance |
零點平衡 |
±1% of rated output |
|
Creep after 30 minutes |
蠕變 |
±0.03% of rated output |
|
Nonlinearity |
非線性 |
±0.03% of rated output |
|
Hysteresis |
滞後 |
±0.03% of rated output |
|
Repeatability |
重複性 |
±0.03% of rated output |
|
Temp. effect on output |
靈敏度溫漂 |
≤0.002% of applied output/ºC |
|
Temp. effect on zero |
零點溫漂 |
≤0.002% of rated output/ºC |
|
Safe Temp. Range |
可用溫度範圍 |
-10ºC to + 70ºC |
|
Temp. Compensated |
溫度補償範圍 |
-10ºC to + 40ºC |
|
Safe Overload |
安全載荷 |
150% |
|
Input Impedance |
輸入阻抗 |
387 ohm ± 20 ohm |
|
Output Impedance |
輸出阻抗 |
350 ohm ± 5 ohm |
|
Insulation Resistance |
絕緣阻抗 |
≥5000 M ohm (50V DC) |
|
Rated Excitation |
推薦激勵電壓 |
10V DC/AC |
|
Maximum Excitation |
最大激勵電壓 |
15V DC/AC |
|
Cable Length |
導線長度 |
6m |
|
Cable Color Code |
導線顔色 |
Red(+E) Black(-E) Green(+S) White(-S) |
